Getting Started with ESP32: Your Ultimate Beginner’s Guide

Welcome to the exciting journey of creating and innovating with ESP32 microcontrollers! In this guide, you’ll get familiar with the ESP32 family, its development boards, and various programming methods to kickstart your electronics and IoT projects.

🌟 What is ESP32?

The ESP32 is a powerful and versatile microcontroller developed by Espressif Systems, designed specifically for IoT (Internet of Things) applications. It integrates both Wi-Fi and Bluetooth (classic and BLE) connectivity, making it ideal for smart devices, home automation, wearable technology, and countless DIY electronics projects.

🔎 ESP32 Development Board Overview

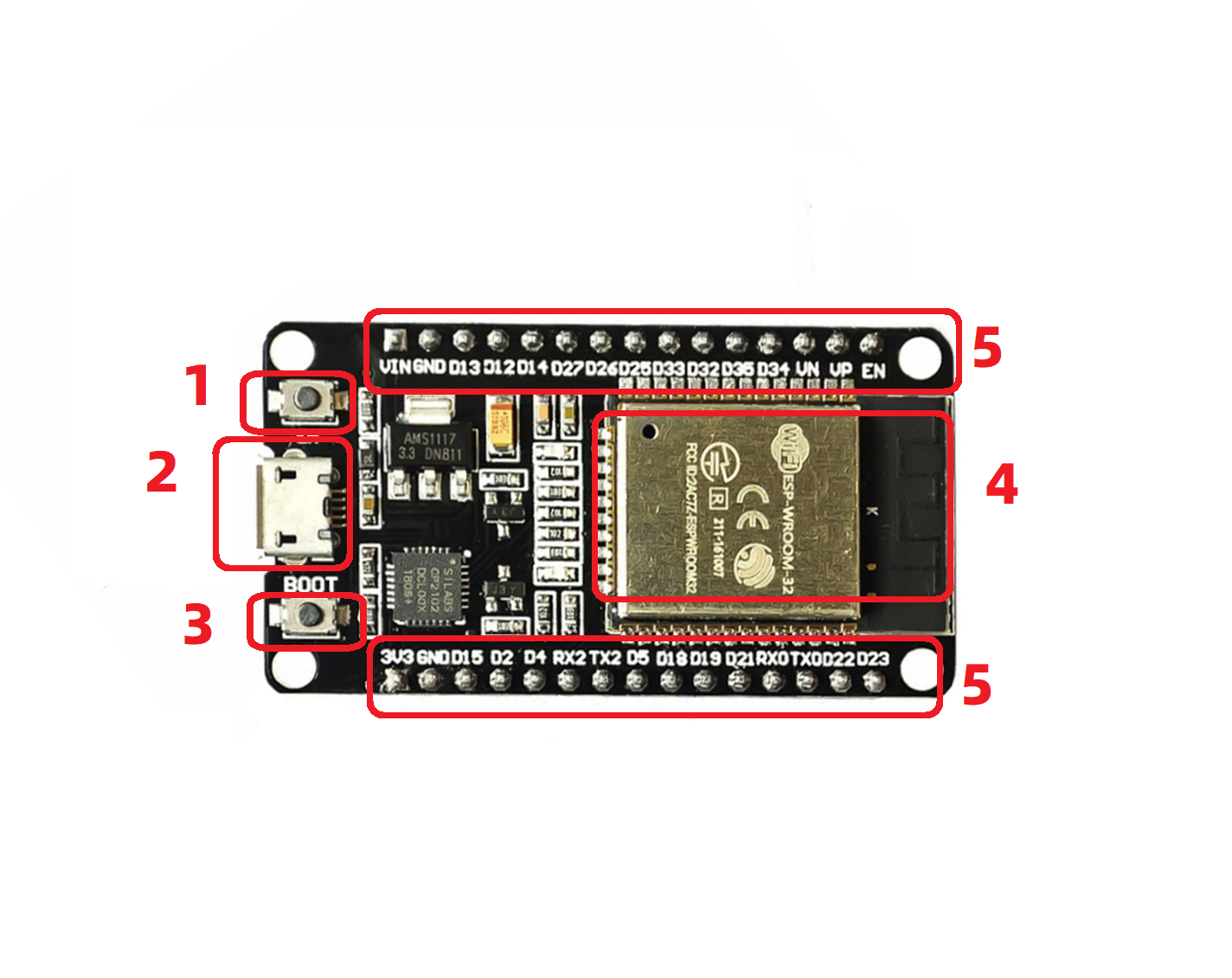

A typical ESP32 development board consists of several key components: alt text

Micro USB Port:
Supplies power to the board (usually 5V) and allows you to upload programs directly from your computer.
Reset Button (RST):
Quickly restart your ESP32 board, helpful during troubleshooting or after uploading new code.
BOOT Button (IO0):
Used to put the board into firmware upload mode (bootloader) when held during startup, enabling you to flash new software onto the ESP32.
ESP32-WROOM-32 Module:
The heart of the development board, containing the ESP32 chip, flash memory, and antenna, responsible for wireless communication and general processing tasks.
GPIO Pins (General Purpose Input Output):
Programmable pins allowing your ESP32 to interface with external devices like sensors, actuators, LEDs, motors, relays, and more.

⚠️ Pin Limitations and Solutions

The ESP32 chip has 48 pins, 34 of which are programmable GPIO pins. Each GPIO pin supports multiple functionalities (known as pin multiplexing), but only one function can be activated at a time—such as GPIO, ADC, UART, etc. However, not all ESP32 development boards expose all available pins, and some pins are reserved for internal purposes or have specific restrictions, limiting their usability in certain projects.

To address these limitations, our specially designed extension boards significantly enhance ESP32’s capabilities by providing additional GPIO pins and dedicated ports for multiple I2C, SPI, UART interfaces. This resolves common issues like pin shortages and difficulties using multiple I2C devices simultaneously, greatly simplifying and expanding the possibilities for your advanced ESP32 projects.

📚 ESP32 Programming Methods

There are multiple ways to program an ESP32 board, each suitable for different use cases and skill levels:

🌟 Arduino (C/C++)

What: A user-friendly development environment based on simplified C++ programming.
Why: Beginner-friendly, extensive community support, numerous ready-to-use libraries.
Tools: Arduino IDE, VSCode or CLion (using PlatformIO extension).

🚀 ESP-IDF (Espressif IoT Development Framework)

What: Official development framework by Espressif, specifically tailored for ESP32.
Why: Professional-level capabilities, highly customizable, great for commercial and industrial applications.
Tools: Command-line environment or IDEs like VSCode with ESP-IDF plugin.

🐍 MicroPython (Python)

What: A simplified Python interpreter directly running on ESP32 hardware.
Why: Easy to learn, rapid prototyping, excellent for beginners or Python programmers.
Tools: Thonny IDE or any compatible Python IDE.

🌐 Other Options

Programming languages like Lua or JavaScript are available through frameworks like NodeMCU or Espruino for specialized use cases.

🎯 Why Arduino?

Arduino is one of the most popular platforms for getting started in electronics:

Open-Source: Easy access, widely available resources.
User-Friendly: Specifically designed for beginners, students, and hobbyists with no prior experience.
Rich Ecosystem: Huge collection of libraries, community support, tutorials, and project examples.
Hardware & Software Integration: Combines simple hardware (like Arduino Uno, Nano, or ESP32-compatible boards) with a simplified programming environment (Arduino IDE).

🎉 Congratulations! Now you have a solid understanding of the ESP32 ecosystem. You’re ready to dive deeper and explore creating exciting projects with ESP32!
